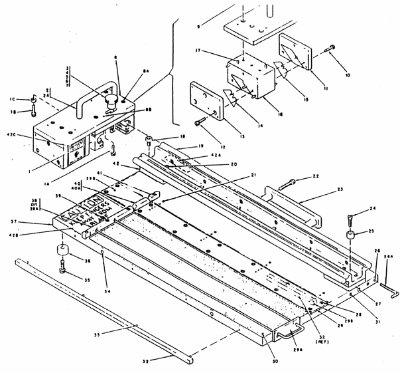

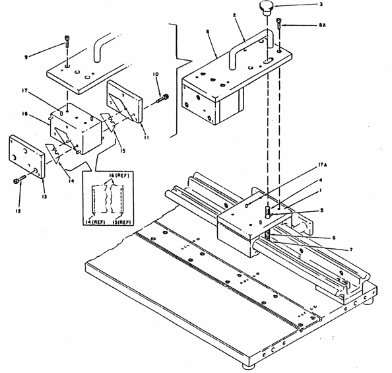

| ITEM # | DESCRIPTION | QTY. |
|---|
| 1 | BEARING SLIDE ASSY. | 1 |
| 1A | ALLEN HEAD CAP SCREW | 1 |
| 1B | ALLEN HEAD CAP SCREW | 1 |
| 1C | LOCKING NUT | 1 |
| 2 | HANDLE | 1 |
| 2A | FLAT HEAD ALLEN CAP SCREWS | 2 |
| 3 | KNOB | 1 |
| 4 | SHAFT | 1 |
| 5 | PIN – LONG | 1 |
| 6 | SPRING | 1 |
| 7 | PIN – SHORT | 1 |
| 8 | TOP PLATE CUTTER ASSY. | 1 |
| 8A | ALLEN HEAD CAP SCREW | 4 |
| 8B | PIN | 4 |
| 9 | ALLEN HEAD CAP SCREW | 3 |
| 10 | ALLEN HEAD CAP SCREW | 3 |
| 11 | RIGHT CLAMP BLOCK | 1 |
| 12 | ALLEN HEAD CAP SCREW | 3 |
| 13 | LEFT CLAMP BLOCK | 1 |
| 14 | CUTTER BLADE | 1 |
| 15 | CUTTER BLADE | 1 |
| 16 | CUTTER BLADE HOLDER | 1 |
| 17 | PIN | 8 |
| 18 | NYLON STOP ASSY. | 2 |
| 19 | SLIDE MECHANISM BASE | 1 |
| 20 | ALLEN CAP SCREW | 4 |
| 21 | BUSHING | 4 |
| 22 | ALLEN HEAD CAP SCREW | 2 |
| 23 | HANDLE | 1 |
| 24 | ALLEN CAP SCREW | 2 |
| 25 | RUBBER STOP | 2 |
| 26 | RARE EARTH MAGNET | 1 |
| 26A | ALLEN WRENCH SHORT 3/16’’ | 1 |
| 27 | SLIDE SPACER | 1 |
| 28 | FLAT HEAD ALLEN CAP SCREWS | 14 |
| ITEM # | DESCRIPTION | QTY. |
|---|
| 29 | ANVIL | 1 |
| 29A | PIN ASSEMBLY | 1 |
| 29B | PIN | 4 |
| 30 | NON-SKID PAD | 1 |
| 31 | BUSHING | 4 |
| 32 | ADJUSTABLE STOP BAR | 1 |
| 33 | PIN | 4 |
| 34 | RARE EARTH MAGNET | 4 |
| 35 | ALLEN HEAD CAP SCREW | 4 |
| 36 | RUBBER FOOT | 4 |
| 37 | BASE | 1 |
| 38 | ALIGNMENT BAR #1 | 1 |
| 38A | ALIGNMENT BAR #1 – FOR 29A | 1 |
| 39 | ALLEN HEAD CAP SCREW | 4 |
| 40 | ANVIL ALIGNMENT BAR #2 | 1 |
| 40A | FLAT HEAD ALLEN CAP SCREW | 2 |
| 41 | ALIGNMENT BAR #3 | 1 |
| 42 | SLIDE SPACER | 1 |
| 42A | PATENT PENDING STICKER | 1 |
| 42B | CAUTION STICKER | 1 |
| 42C | CAUTION STICKER | 2 |
